What is Portable Generator AVR ?
Generator AVR is part of AC generator excitation system, connect host stator winding and excitation winding , to provide precision output voltage of the closed-loop control, according to sampling the voltage control output the current excitation system, motor load bunch of degrees, power factor compensation will output voltage In a certain range of control. High precision, which can adjust the waveform distortion is small, protection function perfect and so on . It can be widely used in all kinds of function and grade of 50/60 HZ AC brushless and Brush generators.
Portal Generator AVR Model:
1.Square 1-3KW AVR Plastic Can
2.Half Round 1-3KW AVR Aluminum Can
3.Half Round 1-3KW AVR Plastic Can
4.Half Round 5KW-7KW AVR Aluminum Can
5.Half Round 5KW-7KW AVR Plastic Can
6.Half Round 5-7KW 3 Phase AVR
7.Diesel Generator 186F AVR 1 Phase
8.Diesel Generator 186F AVR 3 Phase
9.188F Generator and Welder Double use AVR
Square 1-3KW AVR Plastic Can
1-3KW Generator AVR Application:
| Generator Trademark | Generator Type |
| HONDA | EP1800 EP2500 |
| KAWASAKI | GE1400 GE2200 GA2300 GA2900 |
| SUZUKI | SV1400L SV1400LD SV2200L SV2200LD |
| SAWAFUJI | SH1800 SH2600 |
| MARUYAMA | ME1800 ME2600 |
| ELEPAQ | PH1800 PH2600 |
Half Round 1-3KW AVR Aluminum can
1-3KW Generator AVR Application:
| Generator Trademark | Generator Type |
| HONDA | EP1800 EP2500 |
| KAWASAKI | GE1400 GE2200 GA2300 GA2900 |
| SUZUKI | SV1400L SV1400LD SV2200L SV2200LD |
| SAWAFUJI | SH1800 SH2600 |
| MARUYAMA | ME1800 ME2600 |
| ELEPAQ | PH1800 PH2600 |

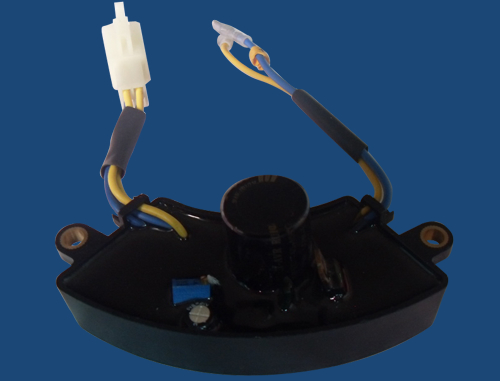

Half Round 1-3KW AVR Plastic Can
1-3KW Generator AVR Application:
| Generator Trademark | Generator Type |
| HONDA | EP1800 EP2500 |
| KAWASAKI | GE1400 GE2200 GA2300 GA2900 |
| SUZUKI | SV1400L SV1400LD SV2200L SV2200LD |
| SAWAFUJI | SH1800 SH2600 |
| MARUYAMA | ME1800 ME2600 |
| ELEPAQ | PH1800 PH2600 |
Half Round 5KW-7KW AVR Aluminum Can
5-7KW Generator AVR Aluminum Can Application:
| Generator Trademark | Generator Type |
| YAMAHA | EDL6500S |
| KUBOTA LOW BOY | GL6500S |
| HONDA | EP3800 EP5000 EC6500 |
| ELEMAX | SH4000 SH5000 SH6000 SH7000 |
| KAWASAKI | GE4300A GE500AS PP4000 PP6000 |
| SAWAFUJI | SH4600EX SH5300EX SH6500EXS SH7600EX |
Half Round 5KW-7KW AVR Plastci Can
5-7KW Generator AVR Application:
| Generator Trademark | Generator Type |
| YAMAHA | EDL6500S |
| KUBOTA LOW BOY | GL6500S |
| HONDA | EP3800 EP5000 EC6500 |
| ELEMAX | SH4000 SH5000 SH6000 SH7000 |
| KAWASAKI | GE4300A GE500AS PP4000 PP6000 |
| SAWAFUJI | SH4600EX SH5300EX SH6500EXS SH7600EX |
Half Round 5-7KW 3 Phase AVR
Three Phase 5KW Automatic Voltage Regulator Technical Data：
(1)Function: short-circuit function, sampling-circuit protection, overload protection.
(2)Scope of application: Single-phase 3-5KW generator.
(3)Rated excitation current: 2A.
(4)Frequency: 50/60HZ.
(5)Sampling voltage:18-30V.
Diesel Generator 186F AVR 1 Phase
5-6.5KW Diesel Generator AVR Application
| Generator Trademark | Generator Type |
| KAMA | KM170 K178 KM186 |
| KIPOR | KD2V78 KDE2500 KDE3500 KDE6500 KDE6700 KDE7000 KDE8000 |
Diesel Generator 186F AVR 3 Phase
5-6.5KW Diesel Generator AVR Application:
| Generator Trademark | Generator Type |
| KAMA | KM170 K178 KM186 |
| KIPOR | KD2V78 KDE2500 KDE3500 KDE6500 KDE6700 KDE7000 KDE8000 |
188F Generator and Welder Double use AVR
Single Generating and Welding Dual Use AVR Technical Data:
(1)Function: interchangeable between generating status and welding status, welding current could adjust to 80-180A.
(2)Scope of application: Single-phase generating and welding dual set.
(3)Rated excitation current: 2.5A.
(4)Deputy winding voltage: 80-180V. (5)Sampling voltage: 115/220V.
